8km Long Distance Lora Modem With Point To Point Communication For Water Meter
Parameters of ZHC0661
| |
| | LoRa | Spreading Factor | 6~12 |
| | 410~525 MHz(Customized) | | 125,250,500 |
| | 20dBm | | 32-bit AES communication encryption |
| | Antenna Base (outer screw hole) |
| | |
| | RS485*1 | Interface number | 6 |
| | Two terminals(A,B) | Standard | AI*4, COM*2 |
| | 1200～921600bps | |
| | 8,9 | Interface number | 4 |
| | 0.5 , 1 , 1.5 , 2 | Standard | (AO,GND)*2 |
| | NONE, EVEN, ODD | | 250V 10A/30V 10A |
- Introduction of Lora Modem ZHC0661
ZHC0661 is a low-frequency half-duplex LoRa data transmission terminal that supports point-to-point communication protocol. It has 4 channels of AI detection, 2 channels of AO output, AI range conversion, local logic and logic settings between devices, and supports AES communication encryption. The use of serial ports for sending and receiving reduces the threshold for wireless applications and can realize data transfer from serial ports to LoRa. LoRa has the advantages of concentrated power density and strong anti-interference ability. The communication distance of this product can reach 8000M (open field, antenna gain 3dBi, height greater than 2m, 0.268K air rate, default channel).
Features of Lora Modem ZHC0661
1.AI input
Function description: Detect the input current value.
2.AO output
Function description: Output current value.
3. AI input range conversion
Function description: Convert the read AI value into the value that needs to be viewed through the range conversion. For example, after the setting is completed, the 4-20mA current can be automatically converted to 0-100℃.
4. AI input range conversion setting method:
Function introduction: Set the AI (4~20mA) range corresponding to the set range to automatically switch.
5. Proactively report
Function introduction: Periodically report AI port status. The reporting period can be set by yourself. (Range 0~65535 unit: S)
A device that transmits rs232/rs485 interface signals through radio technology for data transmission and reception. It can also be called "wireless data transmission station". The data transmission station provides a transparent RS232/RS485 data transmission and reception interface, which is very convenient to communicate with PLC, sensors, industrial control screens, and intelligent Connect the meter and other equipment. The paired use of two digital radio stations can directly replace RS485 wired wiring. It can be widely used in power industry, water conservancy industry, energy industry, agricultural application, municipal industry, geological monitoring, industrial control and other fields.
| | ZHC0661 |
| RS485 Modbus | √ |

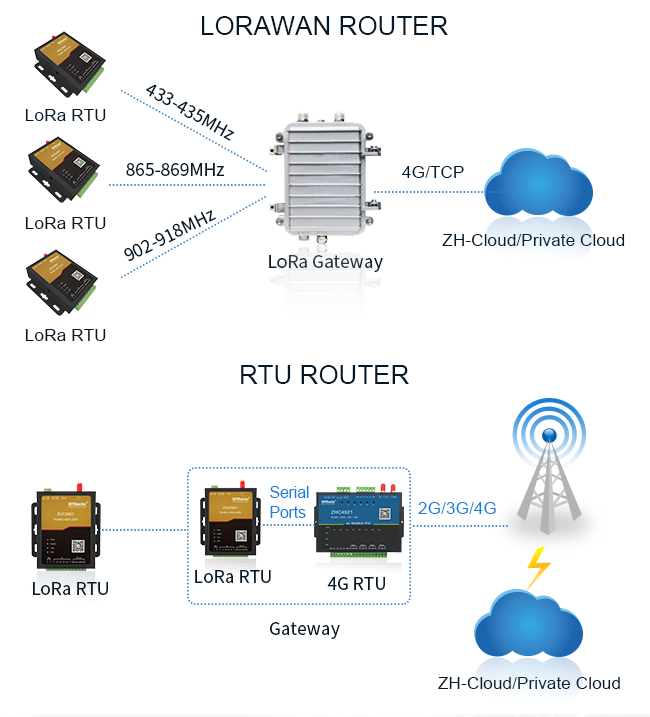

| One to one, one to many Connection | √ |
| RS485 Automatic Acquisition | √ |
| Virtual Serial Port | √ |
| Connfiguration Software | √ |
| Multi-BAND FREQUENCY | √ |
